Tianyu MP45

mPOS Terminal In Your Pocket

Location:

Home

Product & Solution

Smart Devices

Payment Terminals

mPOS Terminal

Boosted and Secure Processors

32-bit security processor realizes supreme security.

Boosted and Secure Processors

32-bit security processor realizes supreme security.

Bluetooth Payment In Full Power

MP45 supports to connect the mobile phone via Bluetooth, making each transaction quick and easy.

The built-in 250mAh lithium-ion battery makes it possible to capture your sales all day long,

which never stops on the move.

Bluetooth Payment In Full Power

MP45 supports to connect the mobile phone via Bluetooth, making each transaction quick and easy. The built-in 250mAh lithium-ion battery makes it possible to capture your sales all day long, which never stops on the move.

All In One Payment

MP45 supports multiple card payment covering magnetic-stripe card, contact IC card, and contactless IC card.

All In One Payment

MP45 supports multiple card payment covering magnetic-stripe card, contact IC card, and contactless IC card.

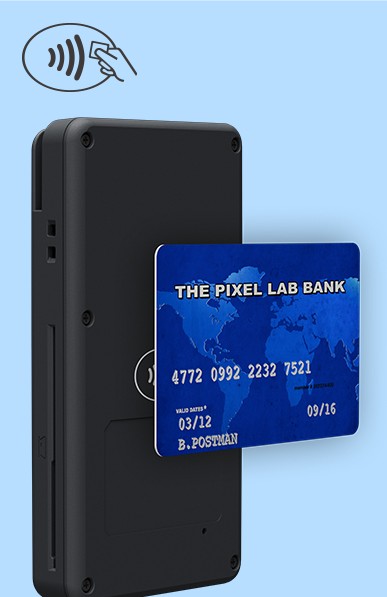

Contactless Card

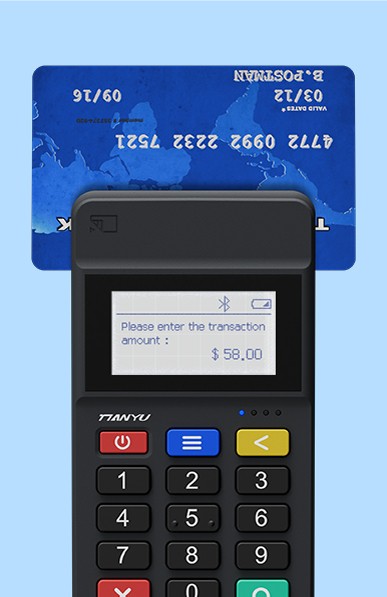

Magstripe Card

Contact Card

User Friendly Pin Pad

Large button design with different colors, four indicator lights (red, blue, yellow and green)

and voice transaction alerts assist your business in real time.

User Friendly Pin Pad

Large button design with different colors, four indicator lights (red, blue, yellow and green) and voice transaction alerts assist your business in real time.

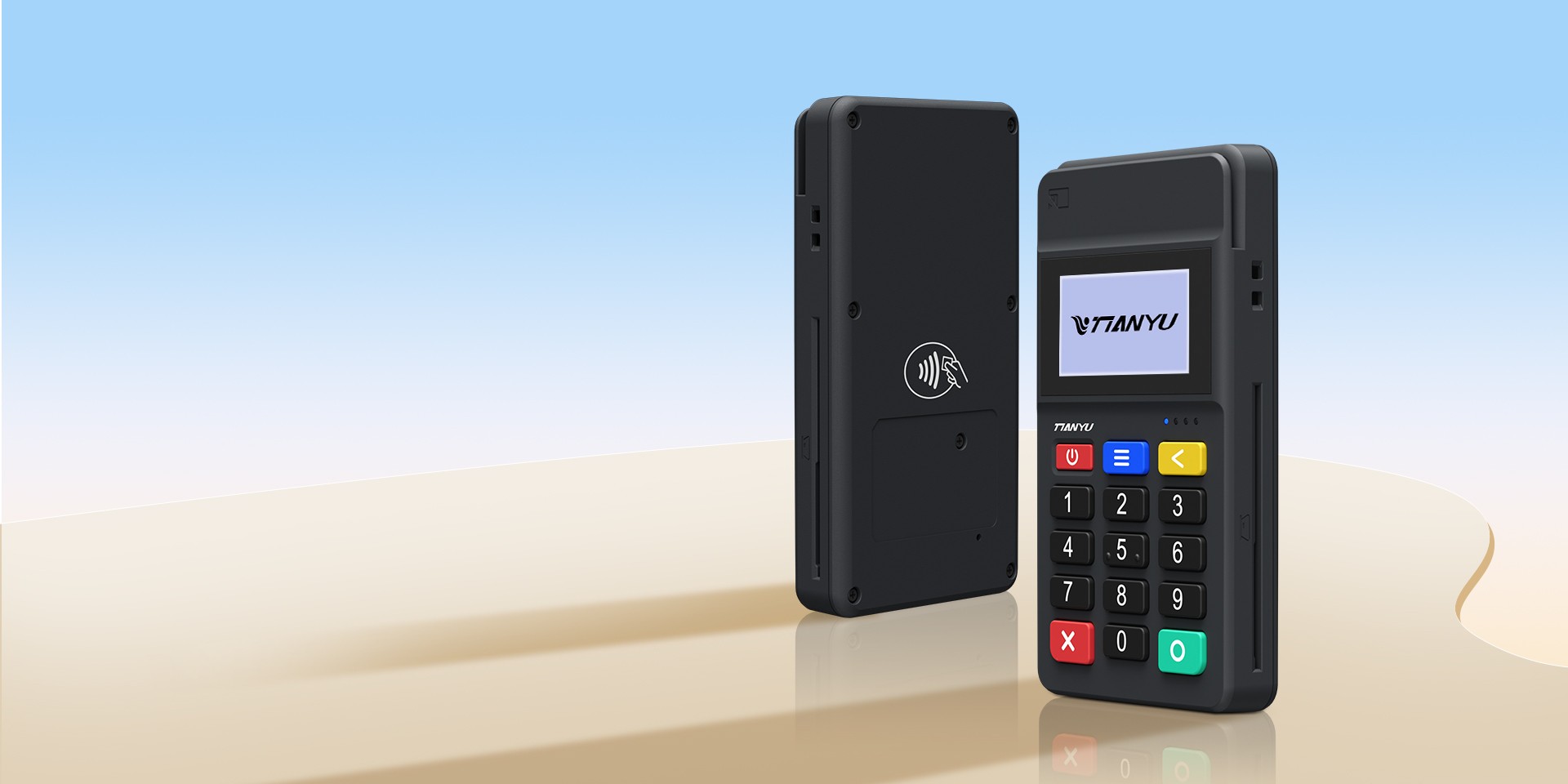

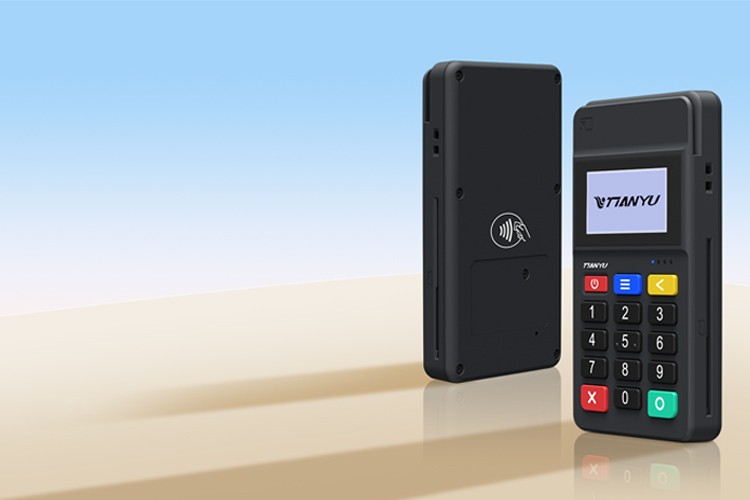

Super Light Pocket Terminal

Super light and compact design makes it

more portable than ever.

Super Light
Pocket Terminal

Super light and compact design makes it more portable than ever.

88g

110mm × 59.5mm × 16mm

Ultimate Security

Individual random key for each time of communication, which means perfect

security for financial transactions.

Ultimate Security

Individual random key for each time of communication, which means perfect security for financial transactions.

Technical Specifications

CPU

32-bit Security Processor

Memory

RAM: 64KB,

FLASH: 4MB

Display

128 × 64 Lattice,

LCD Screen

Bluetooth

BT4.2 BR + BLE,

2.4GHz

IC Card Reader

Capable of 1.8V /

3V / 5V Card

Contactless

Support ISO/IEC

14443 Type A/B,

Mifare

Magstripe Reader

Support Triple Track,

Dual Stripe

Buttons

1 × Power On/Oﬀ,

4 × Function Buttons,

10 × Numerical Buttons

Battery

Rechargeable Battery,

3.7V, 250mA

Audio

Built-in Beep

Transaction Alert

Peripheral Ports

1 × USB TYPE-C

Indicators

Red, Blue, Yellow, Green

Dimension

110mm × 59.5mm × 16mm

Weight

88g

This document is provided to you for informational purposes only. All features and specifications are subject to change without notice.

The Android name and the Android logo Google are trademarks of Google Inc.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

This document is provided to you for informational purposes only. All features and specifications are subject to change without notice.The Android name and the Android logo Google are trademarks of Google Inc.The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
